The basis for sowing a successful crop

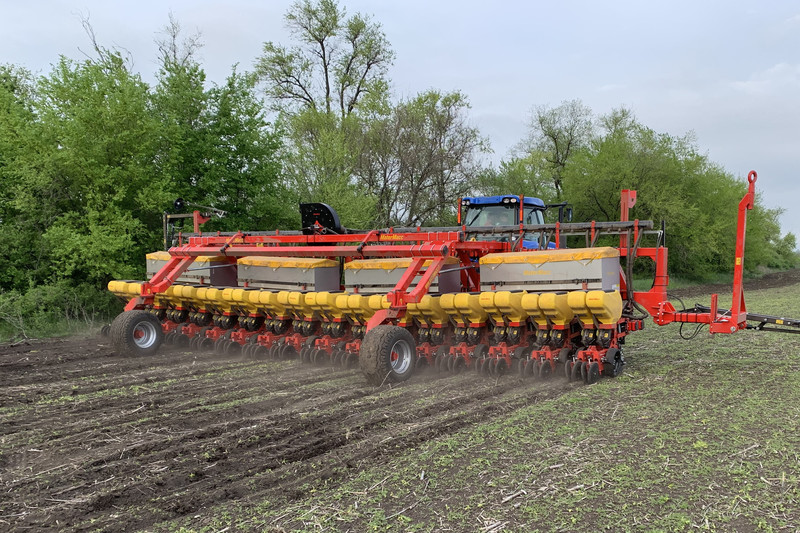

This pneumatic precision planter suitable for the sowing of major crops on tilled soil. The main tool bar is equipped with large support and transport wheels, it is also completed with hoisting and oscillating device which the planters are hitched on. The tool bar includes two draw bars, one for road transport and one to be used in working position. The reduced road transport width (3.75 m) allows it to be moved easily.
This pneumatic precision planter suitable for the sowing of major crops on tilled soil. The main tool bar is equipped with large support and transport wheels, it is also completed with hoisting and oscillating device which the planters are hitched on. The tool bar includes two draw bars, one for road transport and one to be used in working position. The reduced road transport width (3.75 m) allows it to be moved easily.
Customer benefits
Technology
Technical data
| 3XL 816 (16) 70 | 3XL 816 (16) 70 FERTI | 3XL 824-S (24) 70 | 3XL 824-S (24) 70 FERTI | 3XL 836 (36) 45 | |
|---|---|---|---|---|---|
| Number of rows | 16 pcs. | 16 pcs. | 24 pcs. | 24 pcs. | 36 pcs. |
| Row spacing | 70,0 cm | 70,0 cm | 70,0 cm | 70,0 cm | 45,0 cm |
| Transport width | 375 cm | 375 cm | 375 cm | 375 cm | 375 cm |
| Working width | 1,200 cm | 1,200 cm | 1,700 cm | 1,700 cm | 1,700 cm |
| Minimum power | 160 hp | 240 hp | 240 hp | 300 hp | 300 hp |
| Weight | 6.400 kg | 7.500 kg | 7.800 kg | 9.500 kg | 9.000 kg |
| Seed hopper volume | 16 x 70 l | 16 x 70 l | 24 x 70 l | 24 x 70 l | 36 x 70 l |
| Fertiliser hopper volume | - | 4 x 930 l | - | 4 x 1410 l | - |
3XL 816 (16) 70
| Number of rows | 16 pcs. |
| Row spacing | 70,0 cm |
| Transport width | 375 cm |
| Working width | 1,200 cm |
| Minimum power | 160 hp |
| Weight | 6.400 kg |
| Seed hopper volume | 16 x 70 l |
3XL 816 (16) 70 FERTI
| Number of rows | 16 pcs. |
| Row spacing | 70,0 cm |
| Transport width | 375 cm |
| Working width | 1,200 cm |
| Minimum power | 240 hp |
| Weight | 7.500 kg |
| Seed hopper volume | 16 x 70 l |
| Fertiliser hopper volume | 4 x 930 l |
3XL 824-S (24) 70
| Number of rows | 24 pcs. |
| Row spacing | 70,0 cm |
| Transport width | 375 cm |
| Working width | 1,700 cm |
| Minimum power | 240 hp |
| Weight | 7.800 kg |
| Seed hopper volume | 24 x 70 l |
| Fertiliser hopper volume | - |
3XL 824-S (24) 70 FERTI
| Number of rows | 24 pcs. |
| Row spacing | 70,0 cm |
| Transport width | 375 cm |
| Working width | 1,700 cm |
| Minimum power | 300 hp |
| Weight | 9.500 kg |
| Seed hopper volume | 24 x 70 l |
| Fertiliser hopper volume | 4 x 1410 l |
3XL 836 (36) 45
| Number of rows | 36 pcs. |
| Row spacing | 45,0 cm |
| Transport width | 375 cm |
| Working width | 1,700 cm |
| Minimum power | 300 hp |
| Weight | 9.000 kg |
| Seed hopper volume | 36 x 70 l |
| Fertiliser hopper volume | - |
