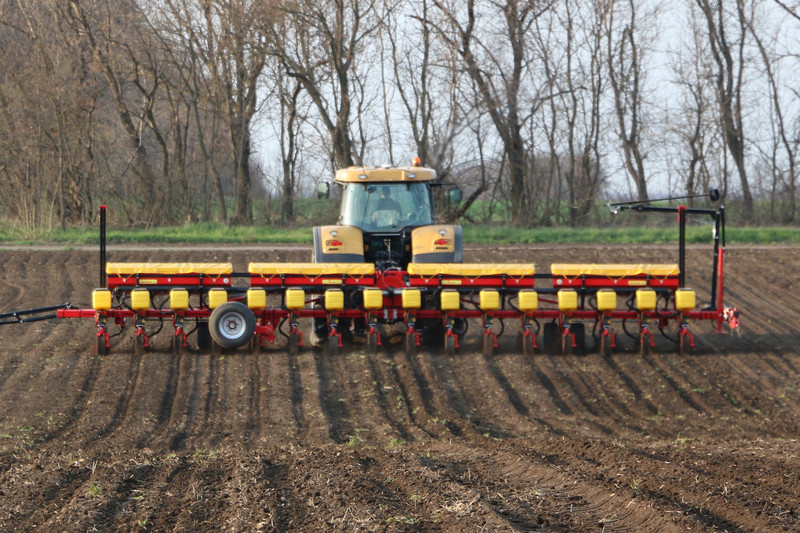

MS 8130 Precision planters with discs for conventional tillage

This pneumatic precision planter with a hydraulic telescopic tool bar allows the user to change directly from working position into transport position. The planter is very compact and light weight.

Brochures

This pneumatic precision planter with a hydraulic telescopic tool bar allows the user to change directly from working position into transport position. The planter is very compact and light weight.

Brochures

Customer benefits

The basis for sowing a successful crop

Precision planting

Profitability

Guaranteed efficiency

Technology

Telescopic tool bar – MS 8130

MS 8130: 6 - 7 rows

MS 8130 ELEKTRO: 6 rows

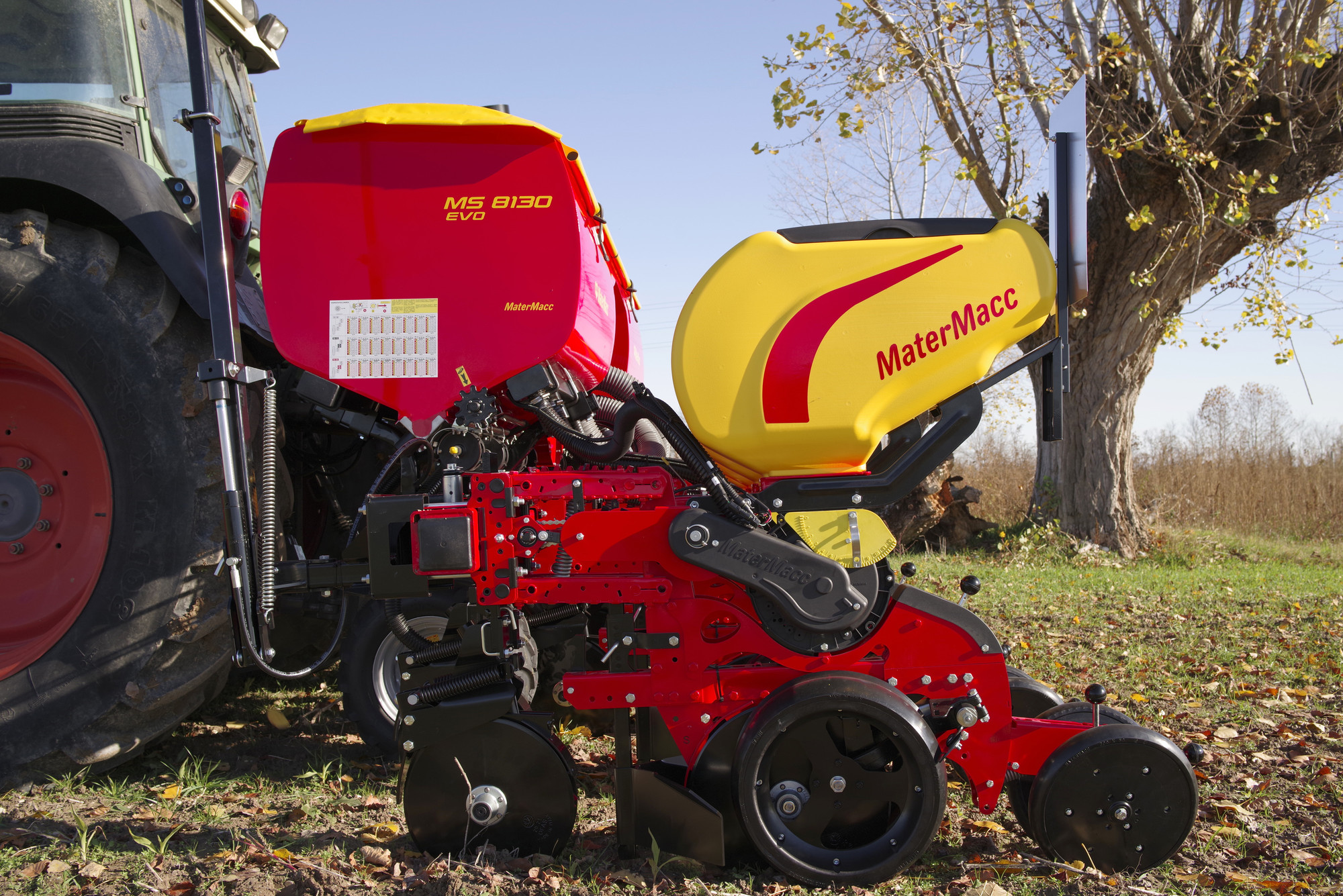

Planter unit 8000

MAGICSEM distributor

Perfectly metered

Straightforward handling

Precise control

Adapted to any scenario

Fertilisation system

Micro-granule spreader

Technical data

	MS 8130 (6) 70	MS 8130 (6) 70 MIRCO	MS 8130 (6) 70 FERTI	MS 8130 (6) 70 MIRCO FERTI	MS 8130 (6) 75
Number of rows	6 pcs.	6 pcs.	6 pcs.	6 pcs.	6 pcs.
Row spacing	70,0 cm	70,0 cm	70,0 cm	70,0 cm	75,0 cm
Transport width	300 cm	300 cm	300 cm	300 cm	300 cm
Working width	300/410 cm	300/410 cm	300/410 cm	300/410 cm	300/410 cm
Minimum power	90 hp	90 hp	90 hp	90 hp	90 hp
Weight	1.100 kg	1.140 kg	1.350 kg	1.430 kg	1.100 kg
Seed hopper volume	6 x 50 l	6 x 50 l	6 x 50 l	6 x 50 l	6 x 50 l
Micro granule hopper volume	-	3 x 25 l	-	3 x 25 l	-
Fertiliser hopper volume	-	-	1 x 1185 l	1 x 1185 l	-

	MS 8130 (6) 75 MICRO	MS 8130 (6) 75 FERTI	MS 8130 (6) 75 MICRO FERTI	MS 8130 (6) 80	MS 8130 (6) 80 MICRO
Number of rows	6 pcs.	6 pcs.	6 pcs.	6 pcs.	6 pcs.
Row spacing	75,0 cm	75,0 cm	75,0 cm	80,0 cm	80,0 cm
Transport width	300 cm	300 cm	300 cm	320 cm	320 cm
Working width	300/410 cm	300/410 cm	300/410 cm	320/430 cm	320/430 cm
Minimum power	90 hp	90 hp	90 hp	90 hp	90 hp
Weight	1.200 kg	1.430 kg	1.520 kg	1.100 kg	1.210 kg
Seed hopper volume	6 x 50 l	6 x 50 l	6 x 50 l	6 x 50 l	6 x 50 l
Micro granule hopper volume	3 x 25 l	-	3 x 25 l	-	3 x 25 l
Fertiliser hopper volume	-	1 x 1185 l	1 x 1185 l	-	-

	MS 8130 (6) 80 FERTI	MS 8130 (6) 80 MICRO FERTI	MS 8130 (7) 50	MS 8130 (7) 50 MICRO	MS 8130 (7) 50 FERTI
Number of rows	6 pcs.	6 pcs.	7 pcs.	7 pcs.	7 pcs.
Row spacing	80,0 cm	80,0 cm	50,0 cm	50,0 cm	50,0 cm
Transport width	320 cm	320 cm	300 cm	300 cm	300 cm
Working width	320/430 cm	320/430 cm	300/410 cm	300/410 cm	300/410 cm
Minimum power	90 hp	90 hp	100 hp	100 hp	100 hp
Weight	1.450 kg	1.530 kg	1.200 kg	1.310 kg	1.570 kg
Seed hopper volume	6 x 50 l	6 x 50 l	7 x 50 l	7 x 50 l	7 x 50 l
Micro granule hopper volume	-	3 x 25 l	-	4 x 25 l	-
Fertiliser hopper volume	1 x 1185 l	1 x 1185 l	-	-	1 x 1185 l

	MS 8130 (7) 50 MICRO FERTI	MS 8130 (7) 60	MS 8130 (7) 60 MICRO	MS 8130 (7) 60 FERTI	MS 8130 (7) 60 MICRO FERTI
Number of rows	7 pcs.	7 pcs.	7 pcs.	7 pcs.	7 pcs.
Row spacing	50,0 cm	60,0 cm	60,0 cm	60,0 cm	60,0 cm
Transport width	300 cm	320 cm	320 cm	320 cm	320 cm
Working width	300/410 cm	320/430 cm	320/430 cm	320/430 cm	320/430 cm
Minimum power	100 hp	100 hp	100 hp	100 hp	100 hp
Weight	1.660 kg	1.200 kg	1.310 kg	1.590 kg	1.670 kg
Seed hopper volume	7 x 50 l	7 x 50 l	7 x 50 l	7 x 50 l	7 x 50 l
Micro granule hopper volume	4 x 25 l	-	4 x 25 l	-	4 x 25 l
Fertiliser hopper volume	1 x 1185 l	-	-	1 x 1185 l	1 x 1185 l

	MS 8130 ELEKTRO (6) 70	MS 8130 ELEKTRO (6) 70 MICRO	MS 8130 ELEKTRO (6) 70 FERTI	MS 8130 ELEKTRO (6) 70 MICRO FERTI	MS 8130 ELEKTRO (6) 75
Number of rows	6 pcs.	6 pcs.	6 pcs.	6 pcs.	6 pcs.
Row spacing	70,0 cm	70,0 cm	70,0 cm	70,0 cm	75,0 cm
Transport width	300 cm	300 cm	300 cm	300 cm	300 cm
Working width	300/410 cm	300/410 cm	300/410 cm	300/410 cm	300/410 cm
Minimum power	80 hp	80 hp	80 hp	80 hp	80 hp
Weight	1.100 kg	1.160 kg	1.500 kg	1.560 kg	1.100 kg
Seed hopper volume	6 x 50 l	6 x 50 l	6 x 50 l	6 x 50 l	6 x 50 l
Micro granule hopper volume	-	3 x 25 l	-	3 x 25 l	-
Fertiliser hopper volume	-	-	1 x 1185 l	1 x 1185 l	-

	MS 8130 ELEKTRO (6) 75 MICRO	MS 8130 ELEKTRO (6) 75 FERTI	MS 8130 ELEKTRO (6) 75 MICRO FERTI	MS 8130 ELEKTRO (6) 80	MS 8130 ELEKTRO (6) 80 MICRO
Number of rows	6 pcs.	6 pcs.	6 pcs.	6 pcs.	6 pcs.
Row spacing	75,0 cm	75,0 cm	75,0 cm	80,0 cm	80,0 cm
Transport width	300 cm	300 cm	300 cm	320 cm	320 cm
Working width	300/410 cm	300/410 cm	300/410 cm	320/430 cm	320/430 cm
Minimum power	80 hp	80 hp	80 hp	80 hp	80 hp
Weight	1.160 kg	1.500 kg	1.560 kg	1.130 kg	1.190 kg
Seed hopper volume	6 x 50 l	6 x 50 l	6 x 50 l	6 x 50 l	6 x 50 l
Micro granule hopper volume	3 x 25 l	-	3 x 25 l	-	3 x 25 l
Fertiliser hopper volume	-	1 x 1185 l	1 x 1185 l	-	-

	MS 8130 ELEKTRO (6) 80 FERTI	MS 8130 ELEKTRO (6) 80 MICRO FERTI
Number of rows	6 pcs.	6 pcs.
Row spacing	80,0 cm	80,0 cm
Transport width	320 cm	320 cm
Working width	320/430 cm	320/430 cm
Minimum power	80 hp	80 hp
Weight	1.530 kg	1.590 kg
Seed hopper volume	6 x 50 l	6 x 50 l
Micro granule hopper volume	-	3 x 25 l
Fertiliser hopper volume	1 x 1185 l	1 x 1185 l

MS 8130 (6) 70

Number of rows	6 pcs.
Row spacing	70,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	90 hp
Weight	1.100 kg
Seed hopper volume	6 x 50 l

MS 8130 (6) 70 MIRCO

Number of rows	6 pcs.
Row spacing	70,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	90 hp
Weight	1.140 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l

MS 8130 (6) 70 FERTI

Number of rows	6 pcs.
Row spacing	70,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	90 hp
Weight	1.350 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	1 x 1185 l

MS 8130 (6) 70 MIRCO FERTI

Number of rows	6 pcs.
Row spacing	70,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	90 hp
Weight	1.430 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	1 x 1185 l

MS 8130 (6) 75

Number of rows	6 pcs.
Row spacing	75,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	90 hp
Weight	1.100 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	-

MS 8130 (6) 75 MICRO

Number of rows	6 pcs.
Row spacing	75,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	90 hp
Weight	1.200 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	-

MS 8130 (6) 75 FERTI

Number of rows	6 pcs.
Row spacing	75,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	90 hp
Weight	1.430 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	1 x 1185 l

MS 8130 (6) 75 MICRO FERTI

Number of rows	6 pcs.
Row spacing	75,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	90 hp
Weight	1.520 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	1 x 1185 l

MS 8130 (6) 80

Number of rows	6 pcs.
Row spacing	80,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	90 hp
Weight	1.100 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	-

MS 8130 (6) 80 MICRO

Number of rows	6 pcs.
Row spacing	80,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	90 hp
Weight	1.210 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	-

MS 8130 (6) 80 FERTI

Number of rows	6 pcs.
Row spacing	80,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	90 hp
Weight	1.450 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	1 x 1185 l

MS 8130 (6) 80 MICRO FERTI

Number of rows	6 pcs.
Row spacing	80,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	90 hp
Weight	1.530 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	1 x 1185 l

MS 8130 (7) 50

Number of rows	7 pcs.
Row spacing	50,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	100 hp
Weight	1.200 kg
Seed hopper volume	7 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	-

MS 8130 (7) 50 MICRO

Number of rows	7 pcs.
Row spacing	50,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	100 hp
Weight	1.310 kg
Seed hopper volume	7 x 50 l
Micro granule hopper volume	4 x 25 l
Fertiliser hopper volume	-

MS 8130 (7) 50 FERTI

Number of rows	7 pcs.
Row spacing	50,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	100 hp
Weight	1.570 kg
Seed hopper volume	7 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	1 x 1185 l

MS 8130 (7) 50 MICRO FERTI

Number of rows	7 pcs.
Row spacing	50,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	100 hp
Weight	1.660 kg
Seed hopper volume	7 x 50 l
Micro granule hopper volume	4 x 25 l
Fertiliser hopper volume	1 x 1185 l

MS 8130 (7) 60

Number of rows	7 pcs.
Row spacing	60,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	100 hp
Weight	1.200 kg
Seed hopper volume	7 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	-

MS 8130 (7) 60 MICRO

Number of rows	7 pcs.
Row spacing	60,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	100 hp
Weight	1.310 kg
Seed hopper volume	7 x 50 l
Micro granule hopper volume	4 x 25 l
Fertiliser hopper volume	-

MS 8130 (7) 60 FERTI

Number of rows	7 pcs.
Row spacing	60,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	100 hp
Weight	1.590 kg
Seed hopper volume	7 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	1 x 1185 l

MS 8130 (7) 60 MICRO FERTI

Number of rows	7 pcs.
Row spacing	60,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	100 hp
Weight	1.670 kg
Seed hopper volume	7 x 50 l
Micro granule hopper volume	4 x 25 l
Fertiliser hopper volume	1 x 1185 l

MS 8130 ELEKTRO (6) 70

Number of rows	6 pcs.
Row spacing	70,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	80 hp
Weight	1.100 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	-

MS 8130 ELEKTRO (6) 70 MICRO

Number of rows	6 pcs.
Row spacing	70,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	80 hp
Weight	1.160 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	-

MS 8130 ELEKTRO (6) 70 FERTI

Number of rows	6 pcs.
Row spacing	70,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	80 hp
Weight	1.500 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	1 x 1185 l

MS 8130 ELEKTRO (6) 70 MICRO FERTI

Number of rows	6 pcs.
Row spacing	70,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	80 hp
Weight	1.560 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	1 x 1185 l

MS 8130 ELEKTRO (6) 75

Number of rows	6 pcs.
Row spacing	75,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	80 hp
Weight	1.100 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	-

MS 8130 ELEKTRO (6) 75 MICRO

Number of rows	6 pcs.
Row spacing	75,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	80 hp
Weight	1.160 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	-

MS 8130 ELEKTRO (6) 75 FERTI

Number of rows	6 pcs.
Row spacing	75,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	80 hp
Weight	1.500 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	1 x 1185 l

MS 8130 ELEKTRO (6) 75 MICRO FERTI

Number of rows	6 pcs.
Row spacing	75,0 cm
Transport width	300 cm
Working width	300/410 cm
Minimum power	80 hp
Weight	1.560 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	1 x 1185 l

MS 8130 ELEKTRO (6) 80

Number of rows	6 pcs.
Row spacing	80,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	80 hp
Weight	1.130 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	-

MS 8130 ELEKTRO (6) 80 MICRO

Number of rows	6 pcs.
Row spacing	80,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	80 hp
Weight	1.190 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	-

MS 8130 ELEKTRO (6) 80 FERTI

Number of rows	6 pcs.
Row spacing	80,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	80 hp
Weight	1.530 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	-
Fertiliser hopper volume	1 x 1185 l

MS 8130 ELEKTRO (6) 80 MICRO FERTI

Number of rows	6 pcs.
Row spacing	80,0 cm
Transport width	320 cm
Working width	320/430 cm
Minimum power	80 hp
Weight	1.590 kg
Seed hopper volume	6 x 50 l
Micro granule hopper volume	3 x 25 l
Fertiliser hopper volume	1 x 1185 l
